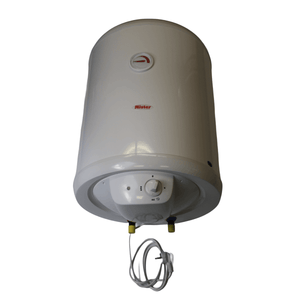

Elektro hanging storage water memory
SKU: EESM60
Manufacturer Information
Name: Zakład Urządzeń Grzewczych ELEKTROMET
Address: Gołuszowice 53, 48-100 Głubczyce, Pl
Email: export@elektromet.com.pl
Website: https://elektromet.pl/en/
European Manufacturer: Yes
Lieferzeit Deutschland
Paket 1 - 3 Tage
Spedition 3 - 5 Tage
Lieferzeit Europa
Paket 3 - 5 Tage
Spedition 5 - 7 Tage
Garantiert sicherer Checkout
Elektro hanging storage water memory
Electric hanging storage tank for domestic water
The Electric hanging storage WJ heaters are pressure-operated devices with a steel tank coated internally with a special ceramic enamel layer that forms a glass-like layer to protect against corrosion, thus ensuring high-quality heated domestic water.
Additional corrosion protection of the electric boiler is provided by a magnesium anode.
The functioning of the anode is based on the difference in electrochemical potential between the container material and the anode.
Electric hanging storage tank for domestic water
The magnesium anode of the electric boiler is located in the lower floor.
The thermal insulation of the electric domestic hot water tank consists of a layer of CFC-free polyurethane foam, which is protected by a casing made of thin powder-coated sheet steel and a lower and upper cover made of ABS plastic.
Thanks to their modern design and technological solutions, WJ electric boilers are economical, durable, and reliable. They are easy to install and operate.
Electric hanging storage tanks for domestic hot water can be installed in any room with a water and electricity connection, except in rooms with an explosion hazard or rooms with temperatures below 0°C.
The WJ type electric boilers in the “MISTER” version are designed for vertical operation only.
FEATURES Electric boiler
- Mister is a family of pressure accumulator which work in a vertical position and offer the possibility of multi-point connection.
- The WJ type electric boilers are designed for heating and storing hot water for sanitary, social and household purposes.
- The heaters are equipped with a 1500 W Electric boiler equipped - ~230V/50Hz.
Technical data: Electric hanging storage tank for domestic hot water
see picture 2
| TYPE | WJ 20 | WJ 30 | WJ 40 | WJ 50 | WJ 60 | WJ 80 | WJ 100 | WJ 120 | WJ 140 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Usable volume | dm³ | 19 | 29 | 39 | 48 | 59 | 79 | 98 | 118 | 139 |
| Heating time for Δt= 50°C for a 1500 W heater | h | 0.78 | 1.1 | 1.5 | 1.9 | 2.3 | 3 | 3.8 | 4.5 | 5.3 |
| Annual electricity consumption | kWh/km | 388 | 533 | 1361 | 1371 | 1382 | 1406 | 1429 | 1441 | 2754 |
| Load profile | S | S | M | M | M | M | M | M | L | |
| Sound power level | dB | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Volume of mixed water at 40°C | dm³ | 32 | 48 | 50 | 67.8 | 95 | 120 | 152 | 194 | 253 |
| Energy efficiency | % | 34 | 33 | 38 | 37 | 37 | 36 | 36 | 36 | 37 |
| Energy efficiency class* | C | C | C | C | C | C | C | C | C | |
| Weight of the heater | kg | 16 | 20 | 25 | 28 | 30 | 35 | 40 | 48 | 56 |

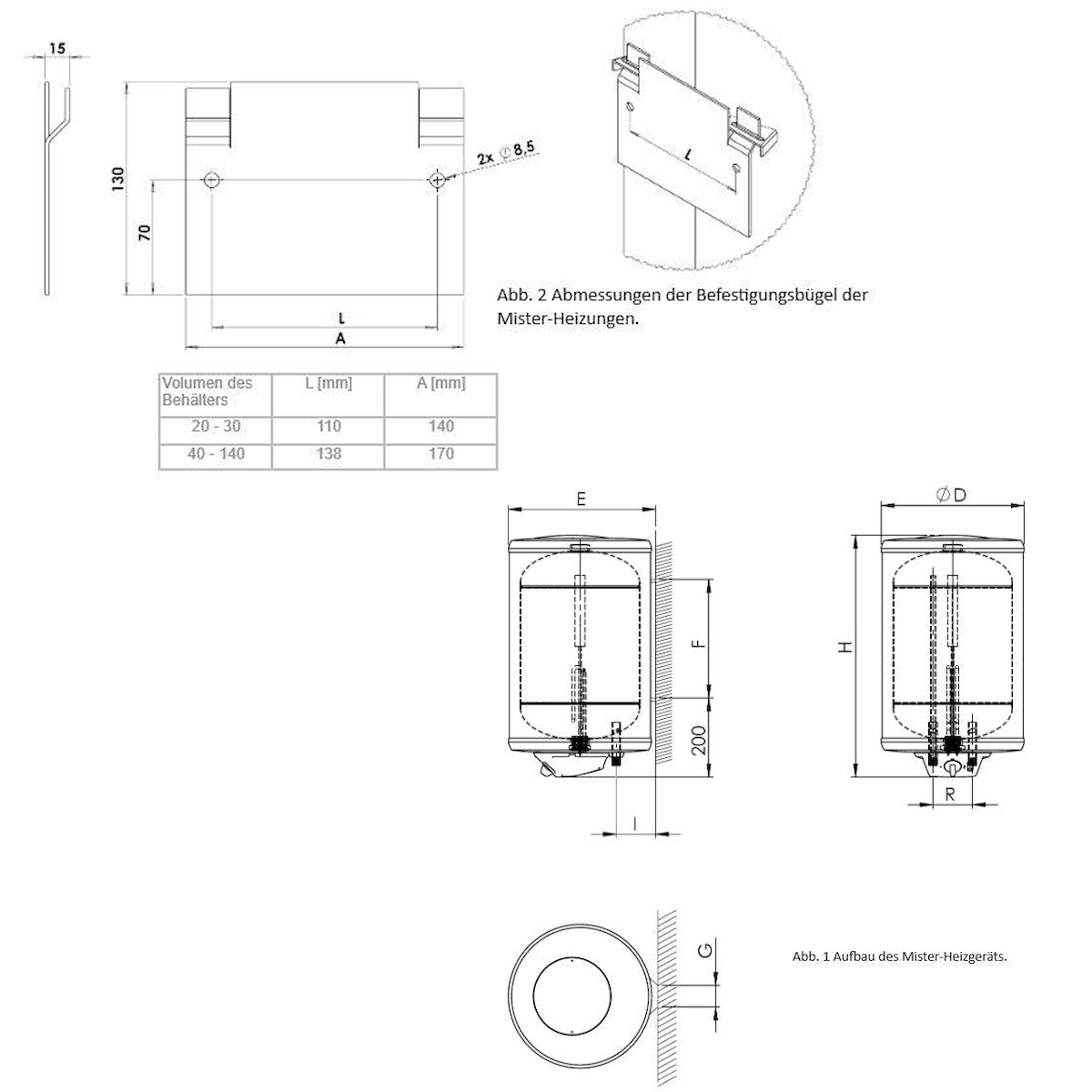

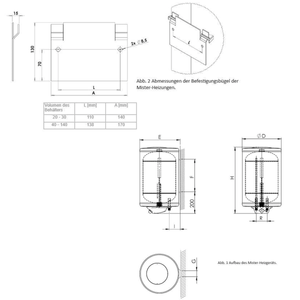

Dimensions:
see picture 3
| TYPE | WJ 20 | WJ 30 | WJ 40 | WJ 50 | WJ 60 | WJ 80 | WJ 100 | WJ 120 | WJ 140 | |
|---|---|---|---|---|---|---|---|---|---|---|
| D | mm | 365 | 365 | 455 | 455 | 455 | 455 | 455 | 455 | 455 |
| H | mm | 490 | 610 | 555 | 640 | 720 | 890 | 1030 | 1190 | 1360 |
| R | mm | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| E | mm | 385 | 385 | 470 | 470 | 470 | 470 | 470 | 470 | 470 |
| G | mm | 135 | 135 | 135 | 135 | 135 | 185 | 185 | 185 | 185 |
| F | mm | 180 | 300 | 220 | 280 | 360 | 490 | 640 | 800 | 960 |
| I | mm | 110 | 110 | 100 | 100 | 100 | 100 | 100 | 100 | 135 |
| Drinking water connections | ½" | ½" | ½" | ½" | ½" | ½" | ½" | ½" | ½" |
Heating controller settings:
- 1 - approx.25°C
- 2 - approx. 50°C
- 3 - approx. 75°C
- ECO - setting between 1 and 2, at which the tank was tested for its energy class, the most economical setting (approx. 45°C).
