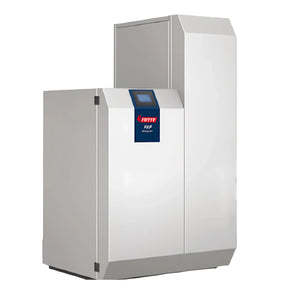

NMT PKP compact- the pellet boiler 30 kW for single & apartment buildings

NMT PKP Kompakt - the pellet boiler 30 kW

Pellet boiler NMT-PKP for single-family and multi-family houses

The Heating with biomass Demand continues to be strong. Designed specifically for single-family and multi-family homes, the PKP-KOMPAKT makes pellet heating in your home comfortable, worry-free, and economical.

The highlights of the NMT PKP Kompakt - the pellet boiler

• simple and convenient handling
• integrated silo
• integrated touchscreen control
• fully automatic and lambda-controlled combustion
• self-cleaning pellet grate
• completely dismantled for easy installation

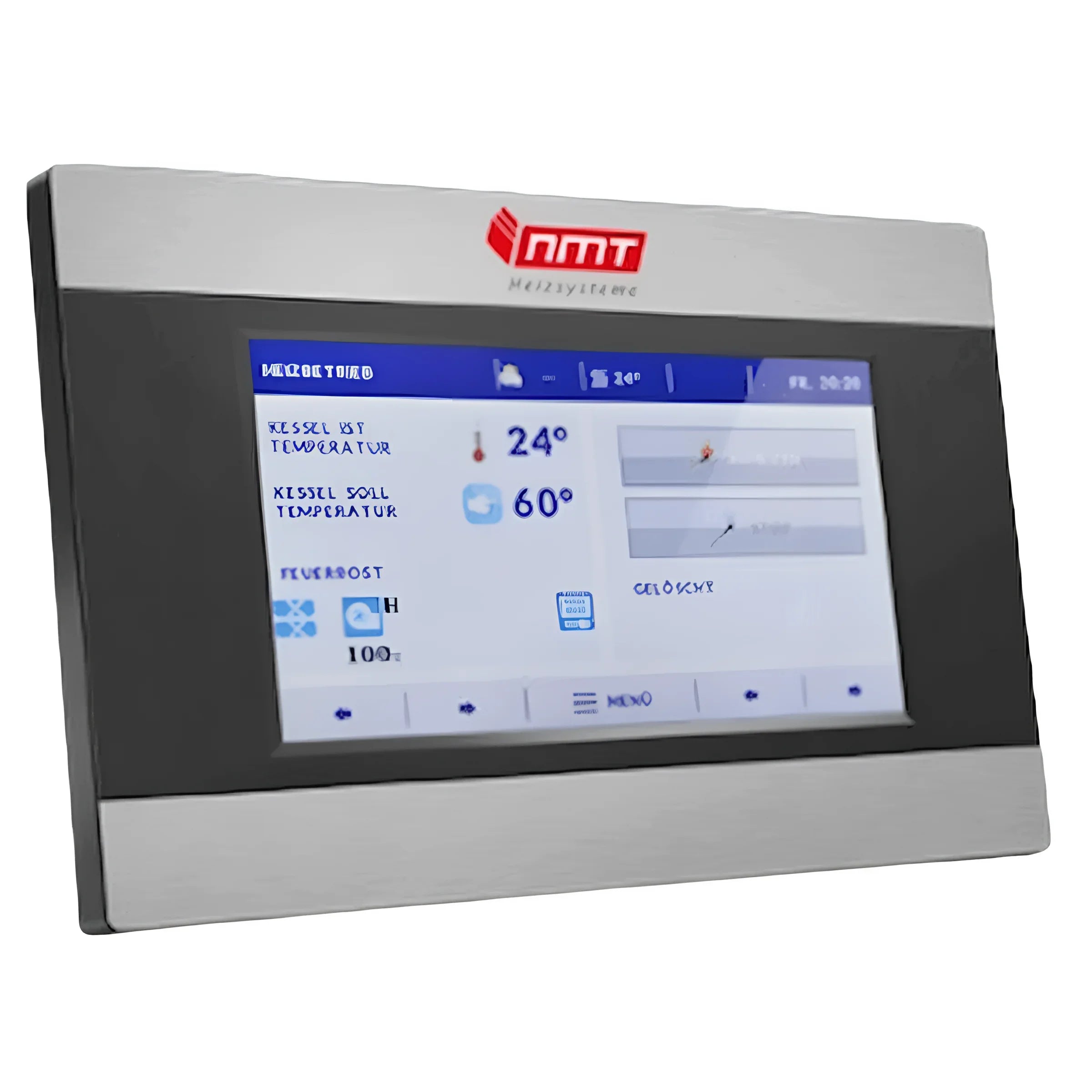

Intuitive controls

• incredibly easy to use
• 2 weather-controlled heating circuits
• Buffer storage management with 2 sensors
• Domestic hot water management with 1 sensor
• Remote control via smartphone app

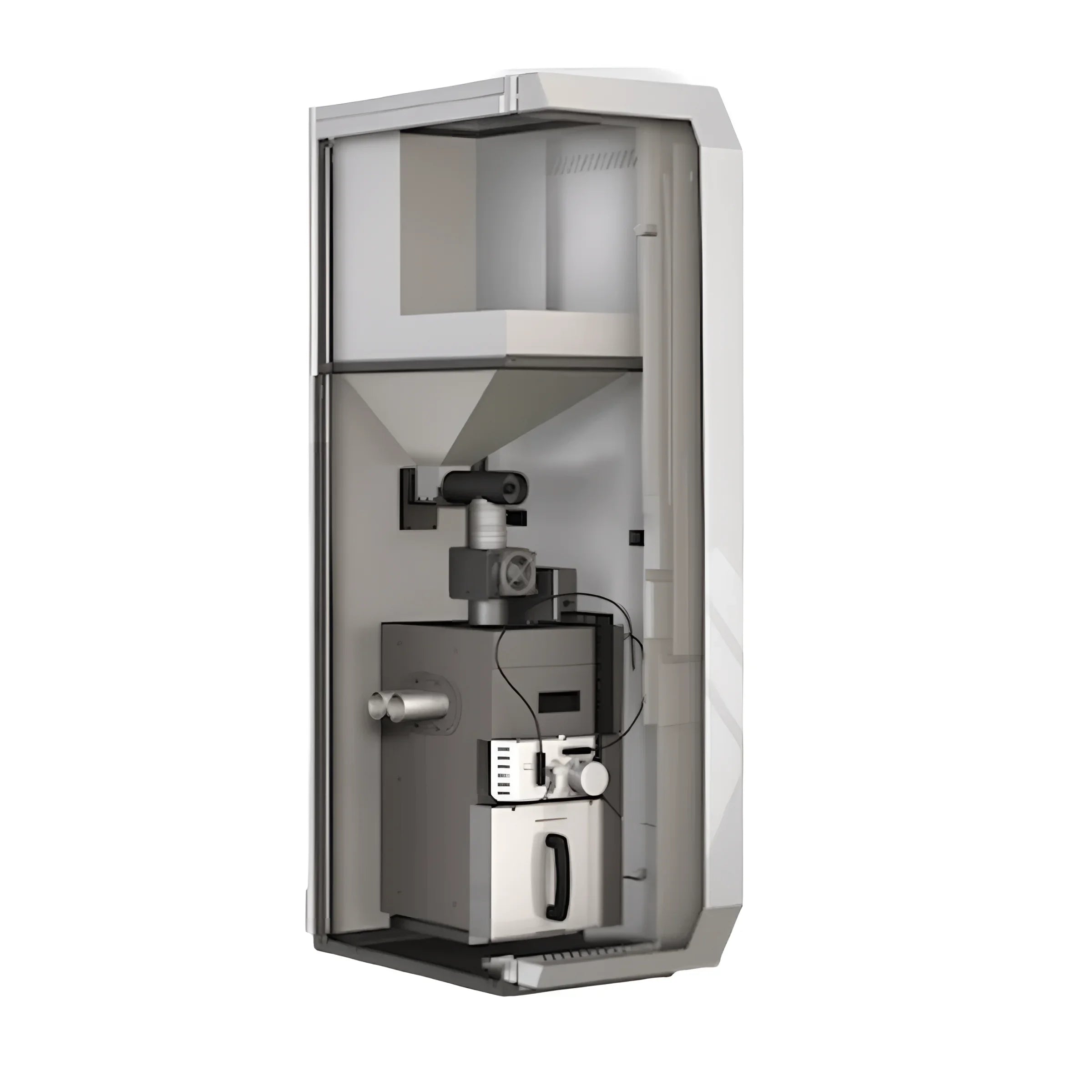

Integrated pellet silo

• Burner unit with integrated 60 kg daily container
• automatic pellet discharge
• ceramic glow plug with extra long service life
• fully automatic cleaning of the pellet combustion chamber after each firing cycle

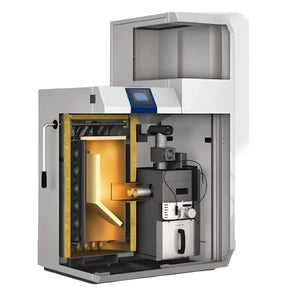

Clean and effective combustion - NMT PKP Kompakt - the pellet boiler 30 kW

• independent operation of the suction system
• modulating, low-noise induced draft fan
• integrated lambda sensor
• low-emission pellet combustion
• convenient cleaning of the heat exchanger surfaces
  with external cleaning lever

flexible setup

• Can be installed flush with the wall on the left or right
• Exhaust pipe connection (80mm) aligned to the rear
• Delivered fully assembled with cladding

Technical data

• Energy efficiency class A+

• Boiler class 5

• Nominal heat output 30 kW

• Efficiency 94%

• Tensile requirement 10 Pa

• CO content 37 mg/m³

• Dust emission 12 mg/m³

• Required fuel: pellets

• Exhaust gas temperature 160 °

• Exhaust gas mass flow 15 g/s

• Height 1640 mm

• Width 990 mm

• Depth 1100 mm

• Flue pipe connection 130 mm

• Weight 341.0 kg

Scope of delivery

• Pellet boiler NMT PKP
• Pellet silo
• steering
• Assembly and operating instructions

Download

• Operating instructions
